2. Creating a Schematic

Introduction

Creating a schematic in Altium is one of the most important steps in PCB Design. Before you create a schematic from scratch, you should already have a good idea on what your PCB will be used for, the logic behind the design, and critical components that will allow for a successful design.

During the schematic design process, you'll follow the steps below:

  1. Requirements - deciding the necessary interfaces, constraints, etc.
  2. Project Libraries - determining which components are needed for your design.
  3. PartComponent Arrangement - arranging and wiring the components on your sheet.
  4. ERC / Compiling - Checking for errors and validating your schematic

Schematic Sheet Set-Up

When you start, you should already have a blank schematic loaded.


As you're creating your schematic, it's helpful to know these controls:

    Right-Click & Hold: Moves the Page Scroll Wheel: Move up and down on the Page Ctrl + Scoll Wheel: Zooms in-and-out of the Page

    Before designing your circuit schematic, it's important to make sure your sheet has everything set-up properly. This includes the Sheet size, title, author, and more.

    To start, navigate to the bottom-right of the window and select Panels --> then select Properties


    A new window should appear as seen below:


    YouIf you scroll down, you can modify the Sheet Size, Orientation, and more! For now, we'll leave the settings as they are.


    If you select the Parameters tab (under the Search Bar), you can modify the sheet's elements.


    Go ahead and modify the following parameters with the following values:

      Date - Today's Date Author - Your Name Title - "SPI-CAN Breakout Board" Revision - 1

      Next, you'll need to place these values on the sheet. With the values set, exit out of the properties window and navigate to the top of the window.

      You'll find a tool-bar filled with many icons. Hover over the "A" icon and right-click until a drop-down appears. Then, select Text String.

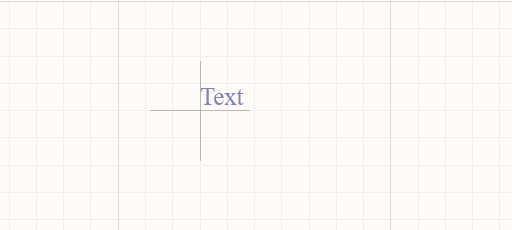

      You'll see the word "Text" appear and move along with your cursor. To place it on your dialog box on your schematic, simply left-click on the sheet.

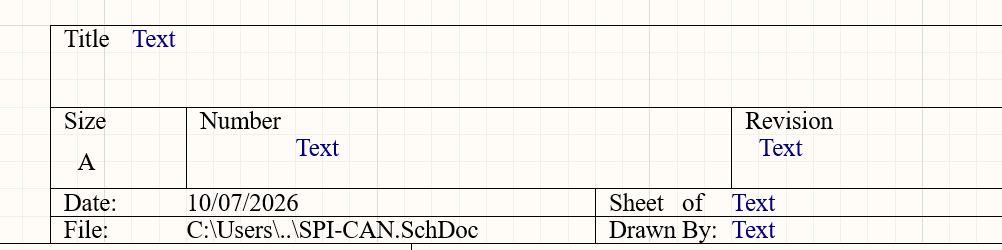

      Like all objects placed on a schematic, you can left-click and hold down on an object to move it around. With this in mind, place a bunch of text boxes in the arrangement below
